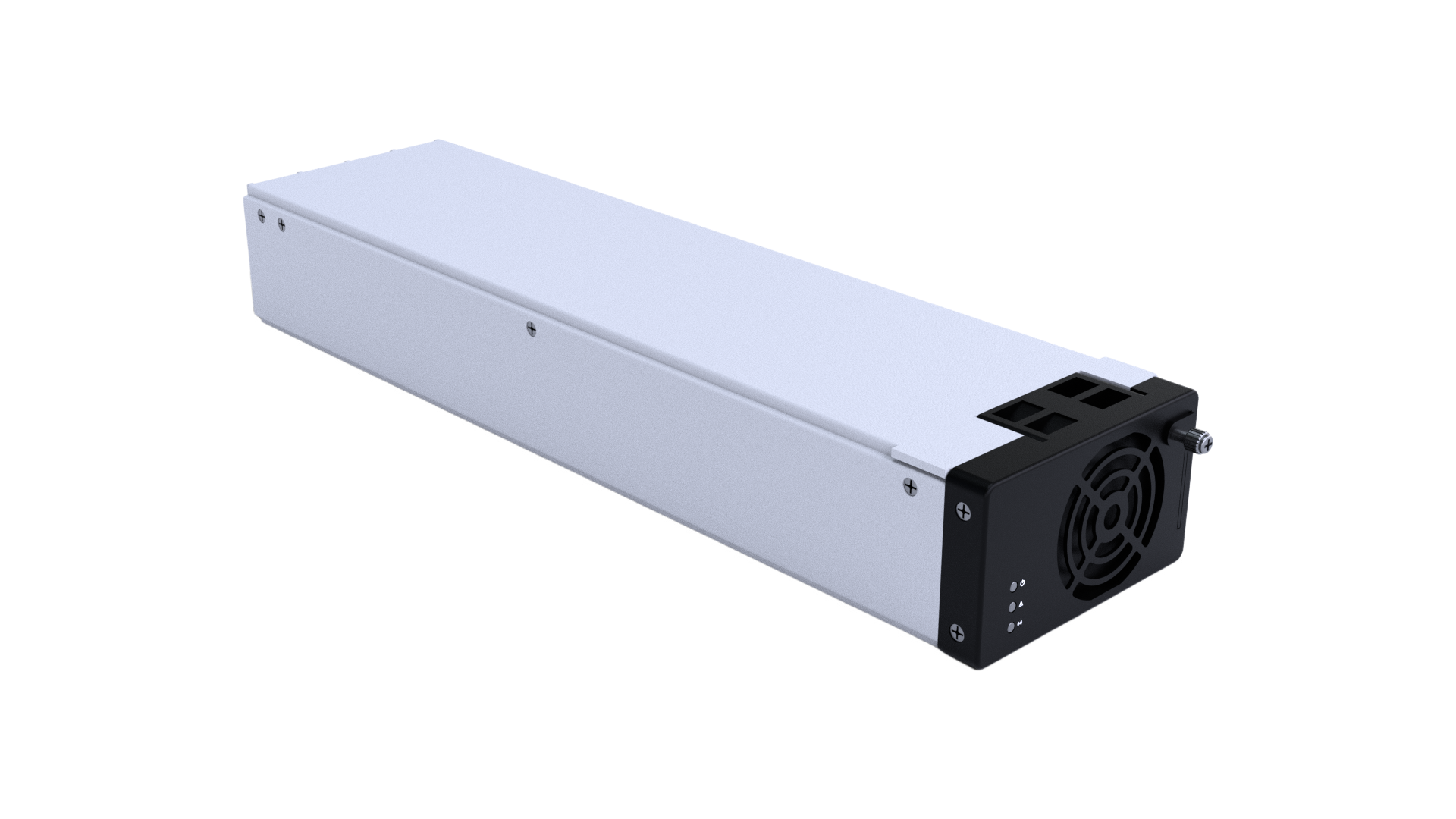

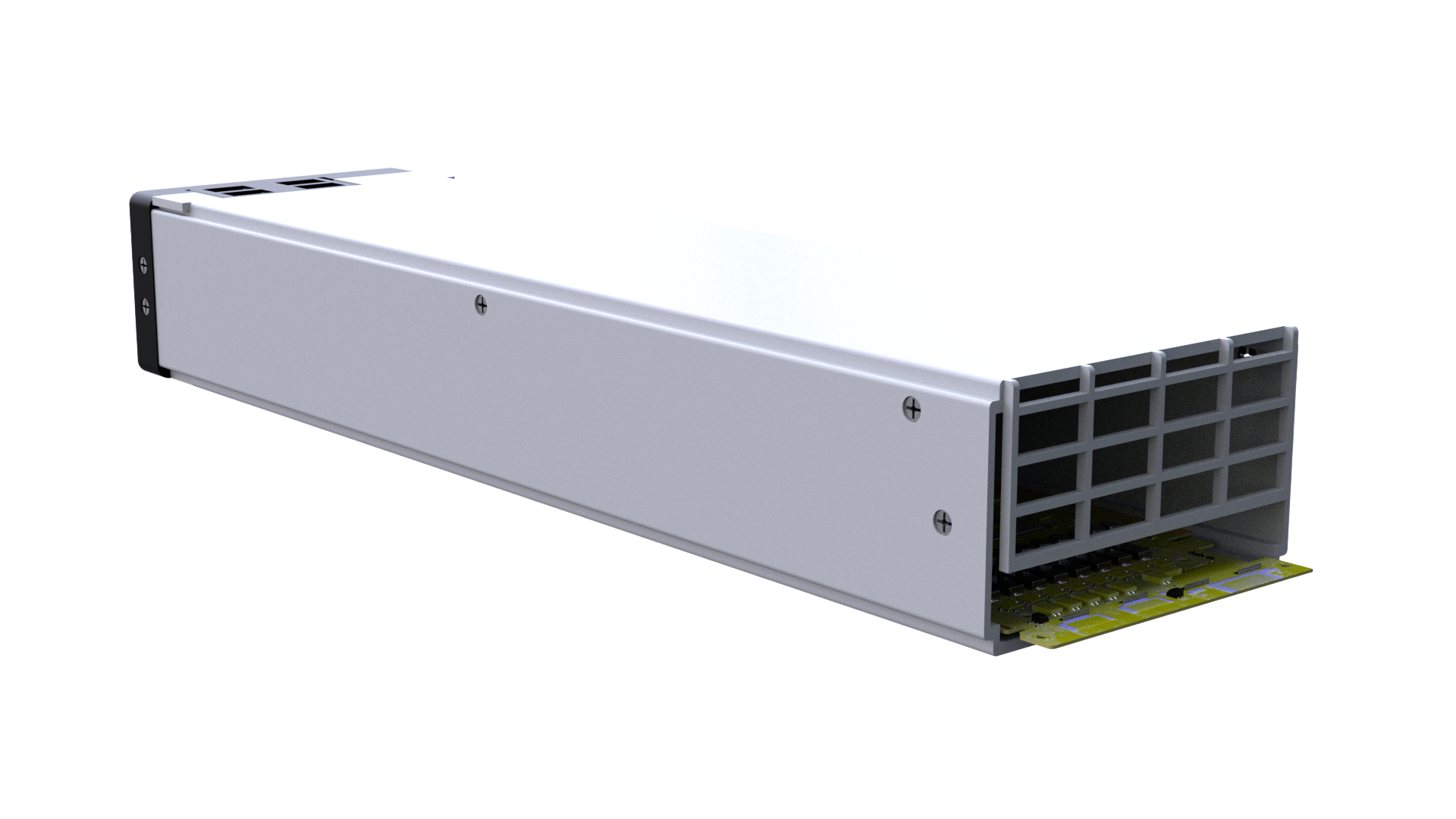

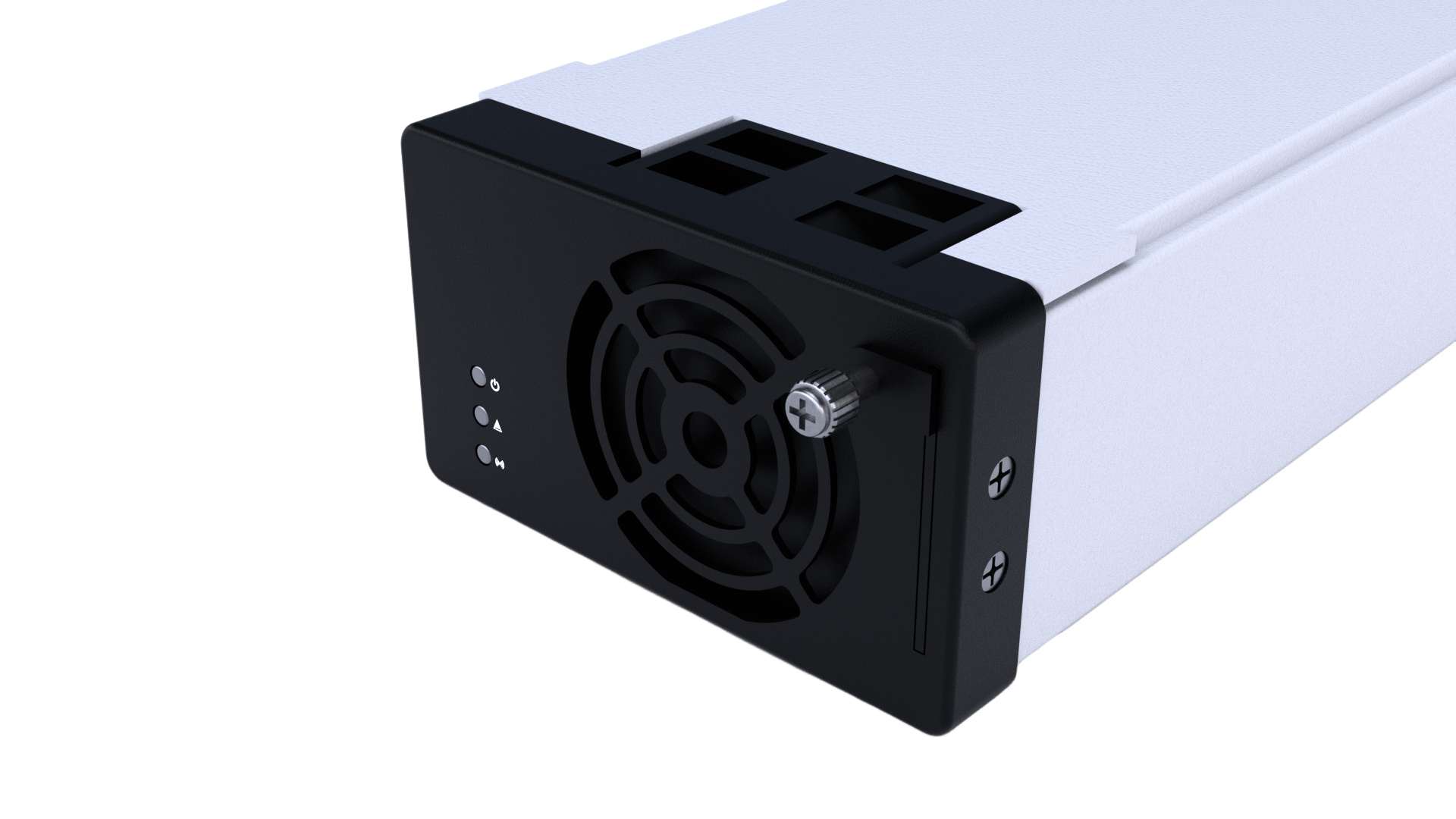

EPS 1000

The IBAN Power EPS 1000 Is A High-Efficiency 48V Rectifier Module Designed For Use With The IBAN EPS4860 DC Power System. It Delivers Up To 1000W At 53.5Vdc With Peak Efficiency Over 96%, And Supports A Wide Input Voltage Range Of 85–265 Vac. Up To 48 Modules Can Operate In Parallel With CAN Communication For System Control, With Comprehensive Protection For Telecom-Grade Reliability.

Get Quote

Request Product Sheet

EPS 1000

Input Voltage

80 - 300Vac

Nominal Output Current

53.5Vdc

Max Output Current

20.8A

Operating Temperature

-40℃ ∼ +55℃

Output Voltage

42 - 58Vdc

Max Output Power

1000W

Efficiency

>95%

Protection

OVP,OCP,OTP,SCP,UVP

Weight

< 2Kg

Dimension

217mm x 40mm x 72mm

Ideal For IBAN Hybrid Power System

Hot-Swappable For Easy Maintenance And Replacement
Forced Air Cooling With Temperature-Controlled Fan
Thermal Protection With Automatic Recovery
Power Factor Correction, PF ≥ 0.99 At 220Vac
Wide AC Input Voltage
1000W Constant Power Output At 53.5Vdc, Efficiency ≥ 96%
Input/Output Protection: OVP, UVP, SCP, OCP, OTP
Supports Up To 48 Modules In Parallel With Load Sharing
CAN Communication Interface For Monitoring And Control
Microprocessor-Controlled For Precise Regulation

Related Product

19"

Indoor

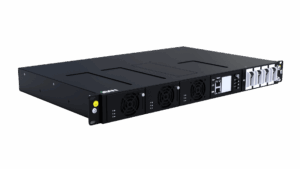

EPS 4860
