Get Started
EN
GET STARTED

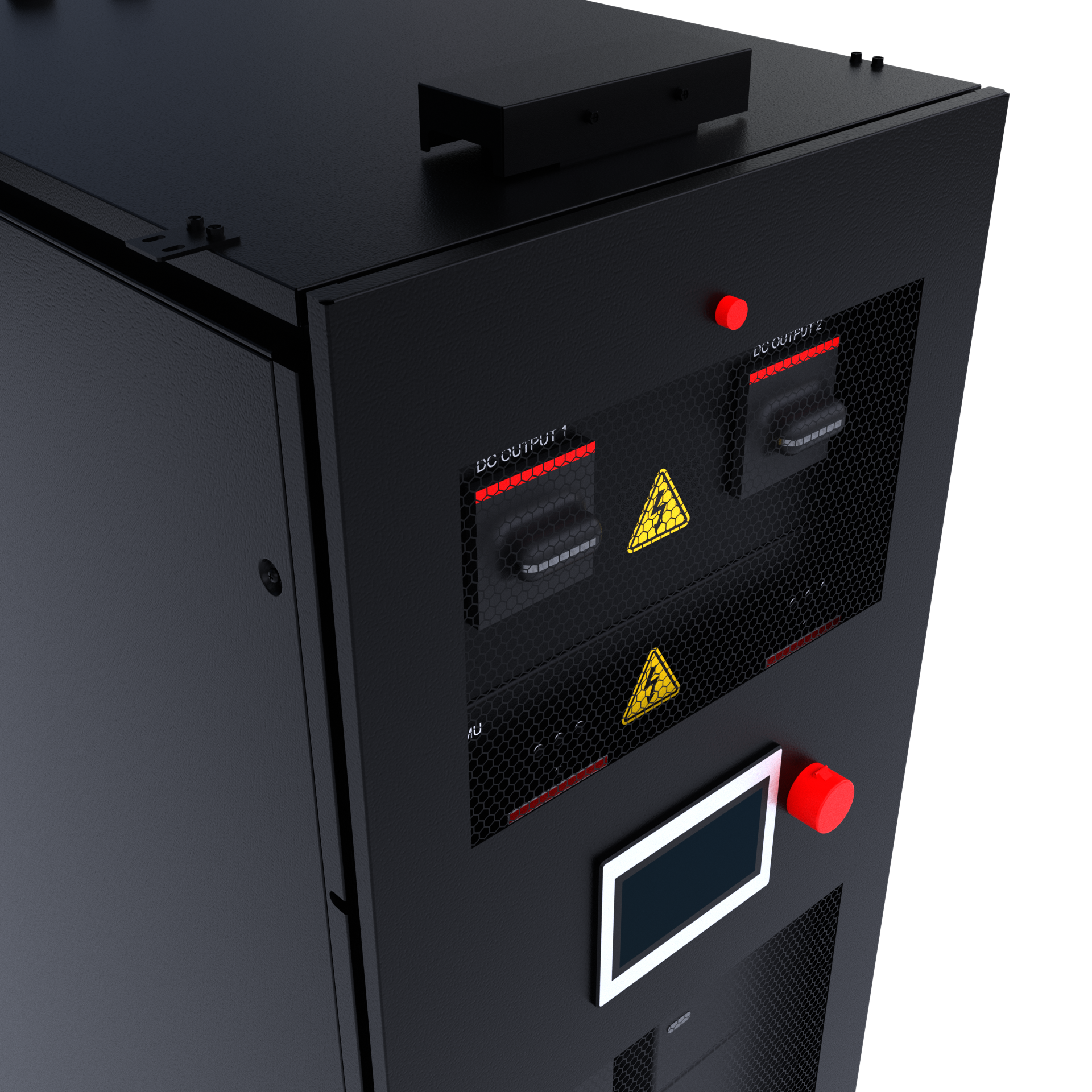

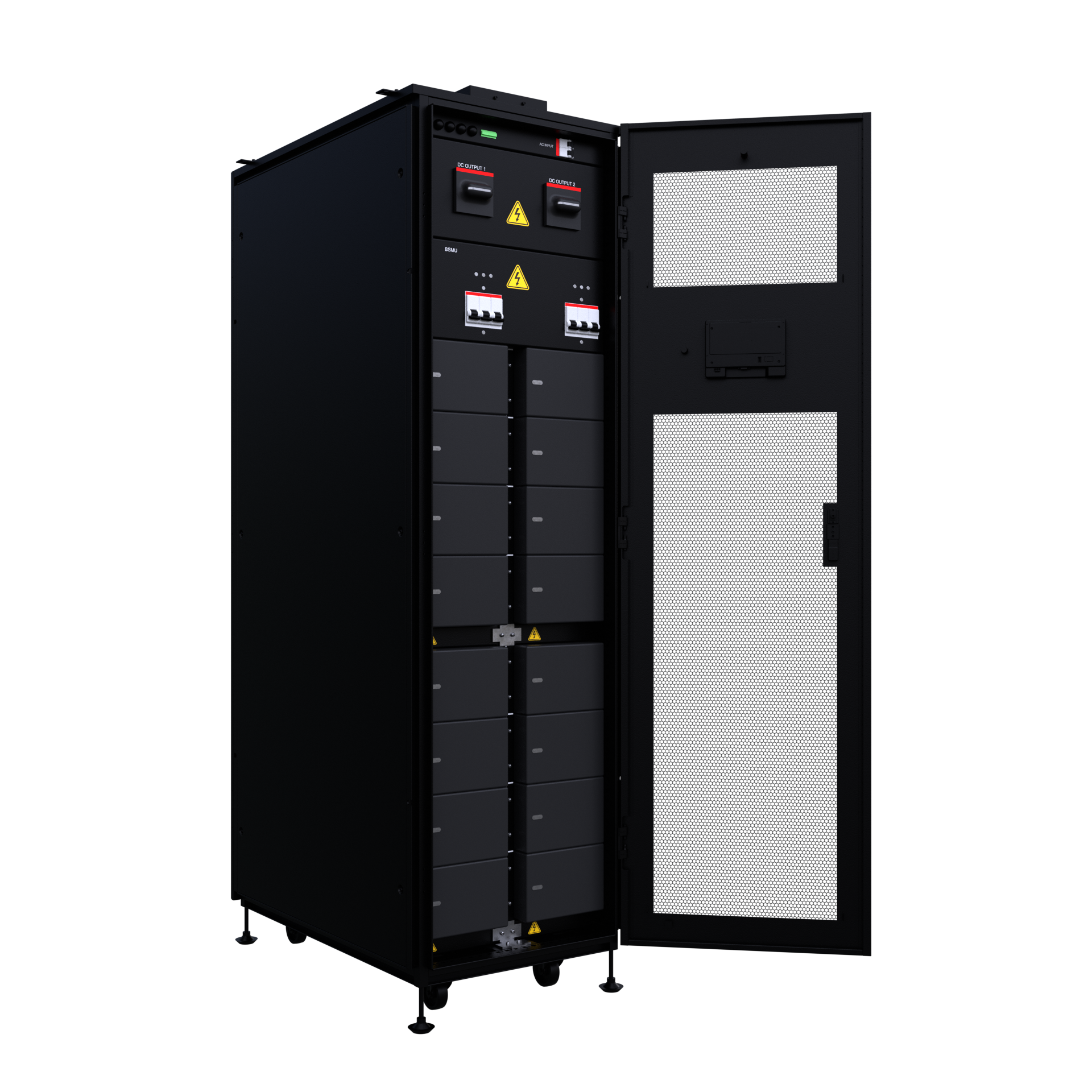

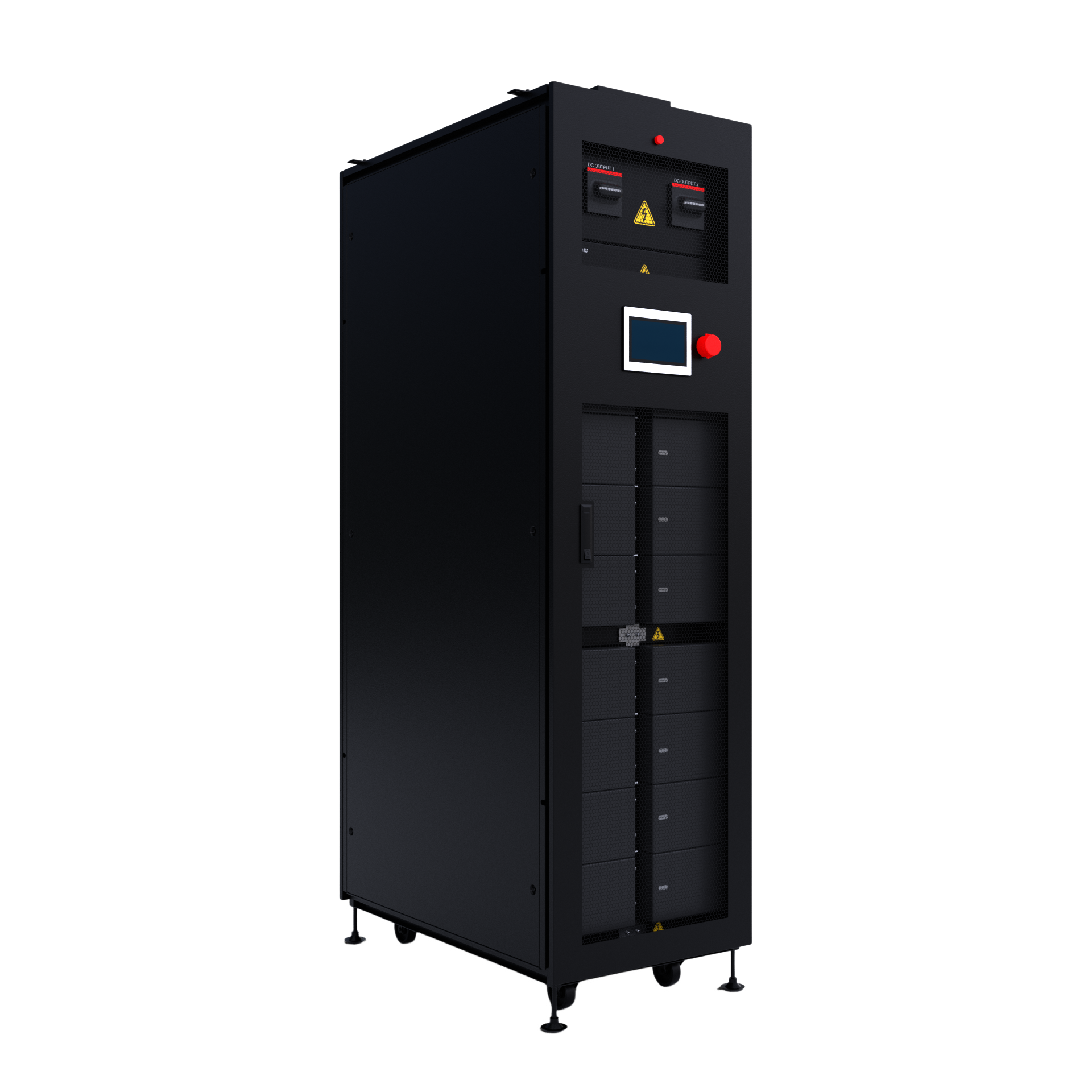

SSI-480140
SSI-480140
SSI-480140

The 512V 140Ah High-Voltage LiFePO₄ Battery System Is Built For Large-Capacity Backup In Telecom Sites, Network Rooms, And Industrial-Grade UPS Applications. It Combines High Energy Density With A Compact, Lightweight Form Factor And Supports Modular Expansion. Integrated With An Advanced Multi-Layer BMS, The System Ensures Precise Management, Fault Isolation, And Long-Term Operational Safety Under High Load Conditions.

Get Quote
Request Product Sheet
SSI-480140
Rated Power
71.68 kW
Maximum Continuous Discharge Power
300 kW
Nominal Capacity
140 Ah
Nominal Energy
71.68 kWh
Nominal Voltage
512 A
Maximum Voltage
576 A
Minimum Voltage
400 V
Charging Current
3.5-70A
Standard Discharge Current
140 A
Maximum Discharge Current
700 A
Communication
RS485, CAN, Ethernet. DRY
Display
LCD Display
Cooling
Natural cooling
Storage Capacity
45% ± 5%
Operating Temperature
0°C ∼ 40°C
Storage Temperature
-20°C ∼ 60°C
Altitude
≤3000m
Relative Humidity
5%∼95%
Protection Level
IP20
Dimension
600mm x 1000mm x 2050mm (42U)
Weight (Kg)
1100Kg
Maintenance
Front and rear maintenance
Outlet Method
Top in top out

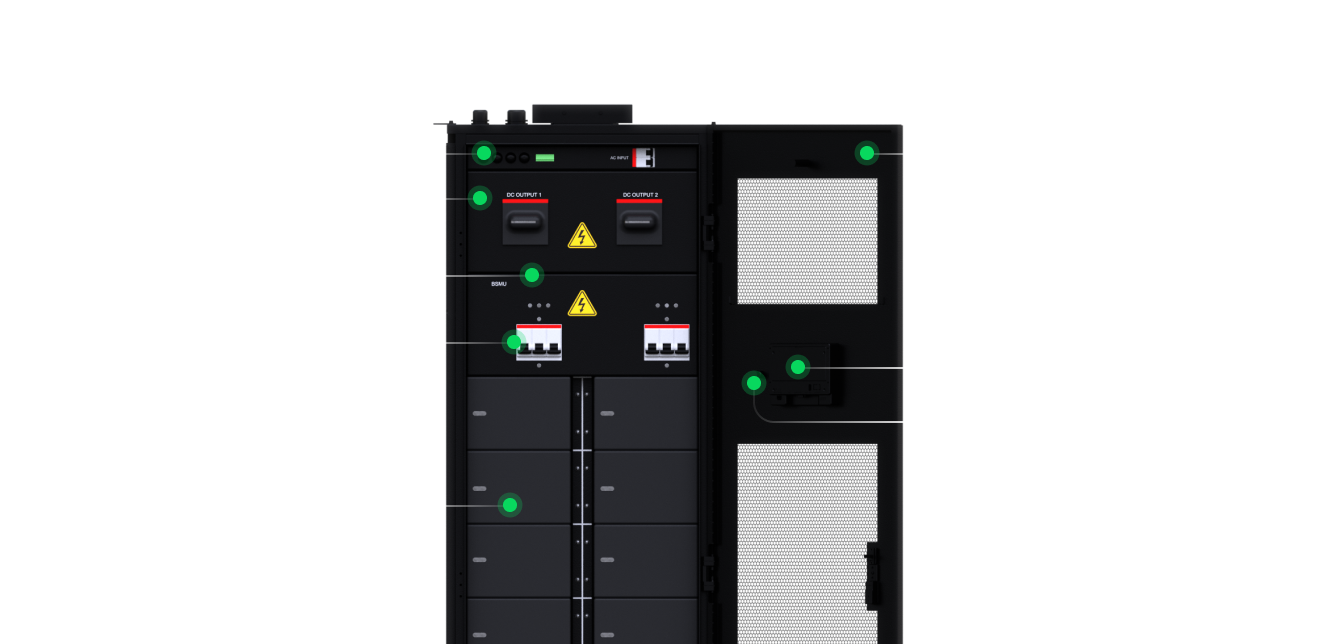

Back Panel

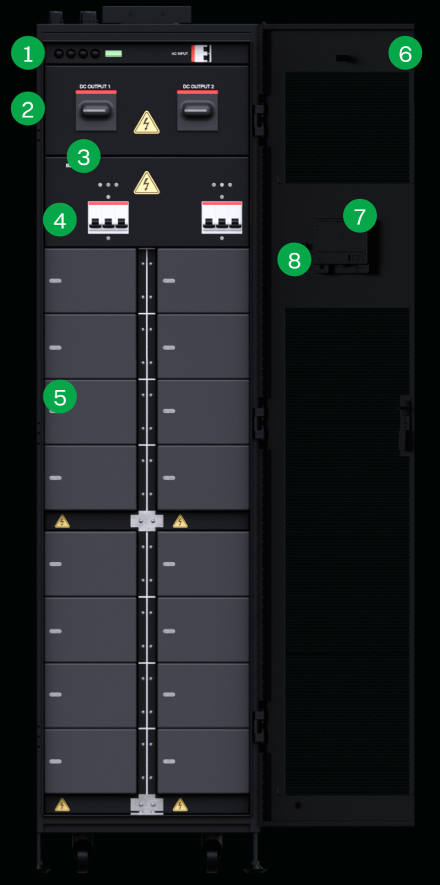

Back Panel Mobile
01
Communication Interface
02
Power Distribution Unit
03
Main Control Box
04
Circuit Breakers
05
Battery Module
06
Buzzer
07
7-Inch HMI
08
Emergency Stop Button

Key Features

Explore our advanced power solutions designed for telecom operations

Safe & Reliable

Safe & Reliable

  • 01
    Integrated pack-level short circuit and fire protection
  • 02
    Reinforced insulation and internal flame-retardant design
  • 03
    Triple-layer BMS architecture with real-time fault detection
  • 04
    High-quality LiFePO₄ cells ensure thermal stability and long cycle life
High Efficiency

High Efficiency

  • 01
    Peak power output up to 300 kW, ideal for high-demand UPS backup
  • 02
    Smart diagnostics for proactive maintenance and remote monitoring
  • 03
    Supports RS485/CAN communication for full system visibility
  • 04
    Scalable cabinet structure for flexible power expansion

Triple-layer BMS

  • BSMU
  • BCMU
  • BMU

Application

IDC Data Centers
IDC Data Centers
Industrial Automation
Industrial Automation
Financial Institutions
Financial Institutions
Telecom Base Stations
Telecom Base Stations
Medical Equipment
Medical Equipment
Transportation Hubs
Transportation Hubs

Related Solution DATA CENTER BACKUP POWER

Related Solution DATA CENTER BACKUP POWER
Contact

Related Product

EBS 48200
19"
Indoor
5U
EBS 48200
442*530*220mm

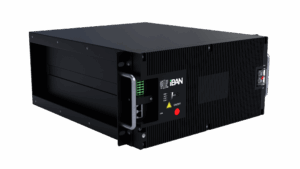

EBS 48200S1
19"
Indoor
5U
EBS 48200S1
442*520*222mm
SSI-480100
SSI-480100
600*600*2050mm
EBS 48200
19"
Indoor
5U
EBS 48200
442*530*220mm
EBS 48200S1
19"
Indoor
5U
EBS 48200S1
442*520*222mm
SSI-480100
SSI-480100
600*600*2050mm
EBS 48200
19"
Indoor
5U
EBS 48200
442*530*220mm
EBS 48200S1
19"
Indoor
5U
EBS 48200S1
442*520*222mm
SSI-480100
SSI-480100
600*600*2050mm

Not finding the exact specifications you need?

No worries — iBAN Power is here with customized solutions to perfectly meet your requirements.

Request Custom
