The IBAN Power 512V 100Ah High-Voltage LiFePO₄ Battery System Is Designed For Backup Applications In Data Centers, Telecom Networks, And Critical Power Infrastructure. It Offers High Energy Density In A Compact Footprint, Supports Scalable Deployment, And Delivers Stable Performance Under Continuous Load. The System Features A Multi- Level Intelligent BMS For Precise Control, Safety Protection, And Extended Cycle Life.

Get Quote
Request Product Sheet
SSI-480100
Rated Power
25 kW
Maximum Continuous Discharge Power
50 kW
Nominal Capacity
100 Ah
Nominal Energy
51.2 kWh
Standard Discharge Current
50 A
Maximum Continuous Discharge Current
102 A
Nominal Voltage
512 V
Maximum Voltage
576 V
Minimum Voltage
400 V
Charging Current
5–100 A
Firefighting
Module level fire protection
System Protection
Over voltage, over current, over temperature, pack level short circuit
Communication
RS485, CAN, Ethernet, DRY
Display
LCD Display
Cooling
Natural cooling
Storage Capacity
45% ± 5%
Operating Temperature
0–40°C
Relative Humidity
5%–95%
Protection Level
IP20
Dimension
600mm x 600mm x 2050mm (42U)
Weight
About 620 kg
Maintenance
Front and rear maintenance
Outlet Method
Top in top out

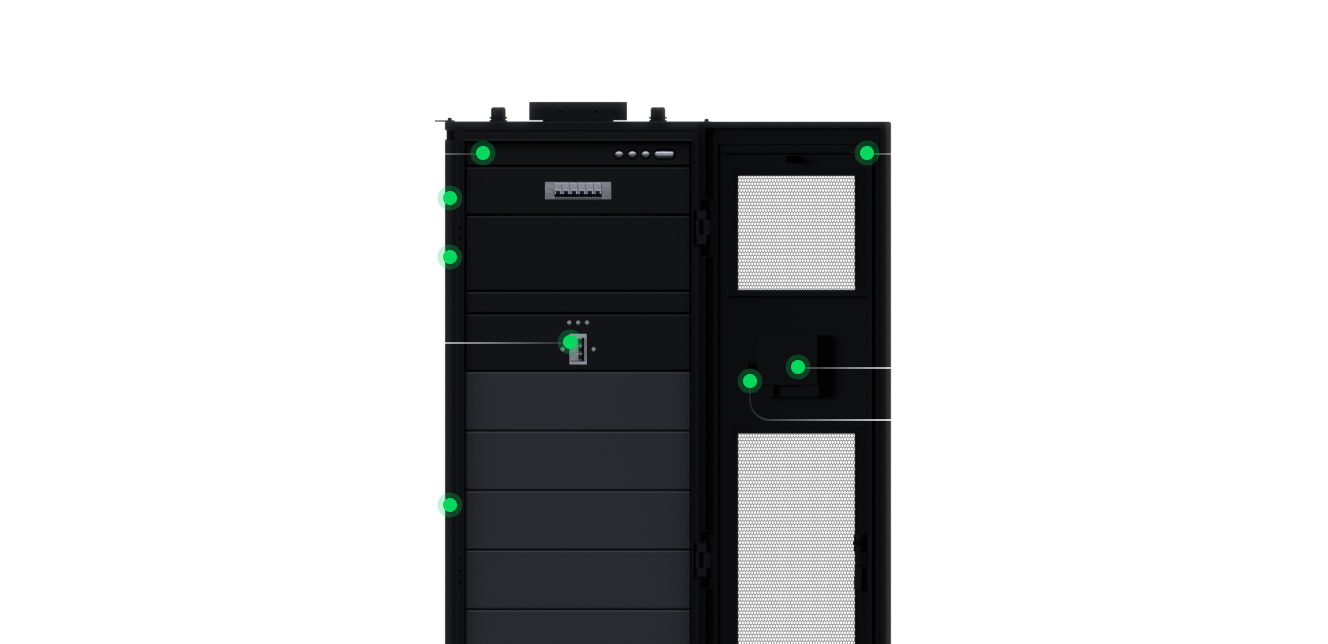

Back Panel
Back Panel Mobile
01
Communication Interface
02
Power Distribution Unit
03
Main Control Box
04
Circuit Breaker
05
Battery Module
06
Buzzer
07
7-Inch HMI
08
Emergency Stop Button

Key Features

Explore our advanced power solutions designed for telecom operations

Safe & Reliable

Safe & Reliable

  • 01
    Integrated pack-level short circuit and fire protection
  • 02
    Reinforced insulation and internal flame-retardant design
  • 03
    Triple-layer BMS architecture with real-time fault detection
  • 04
    High-quality LiFePO₄ cells ensure thermal stability and long cycle life
High Efficiency

High Efficiency

  • 01
    Peak power output up to 300 kW, ideal for high-demand UPS backup
  • 02
    Smart diagnostics for proactive maintenance and remote monitoring
  • 03
    Supports RS485/CAN communication for full system visibility
  • 04
    Scalable cabinet structure for flexible power expansion

Triple-layer BMS

  • BSMU
  • BCMU
  • BMU

Application

IDC Data Centers
IDC Data Centers
Industrial Automation
Industrial Automation
Financial Institutions
Financial Institutions
Telecom Base Stations
Telecom Base Stations
Medical Equipment
Medical Equipment
Transportation Hubs
Transportation Hubs
