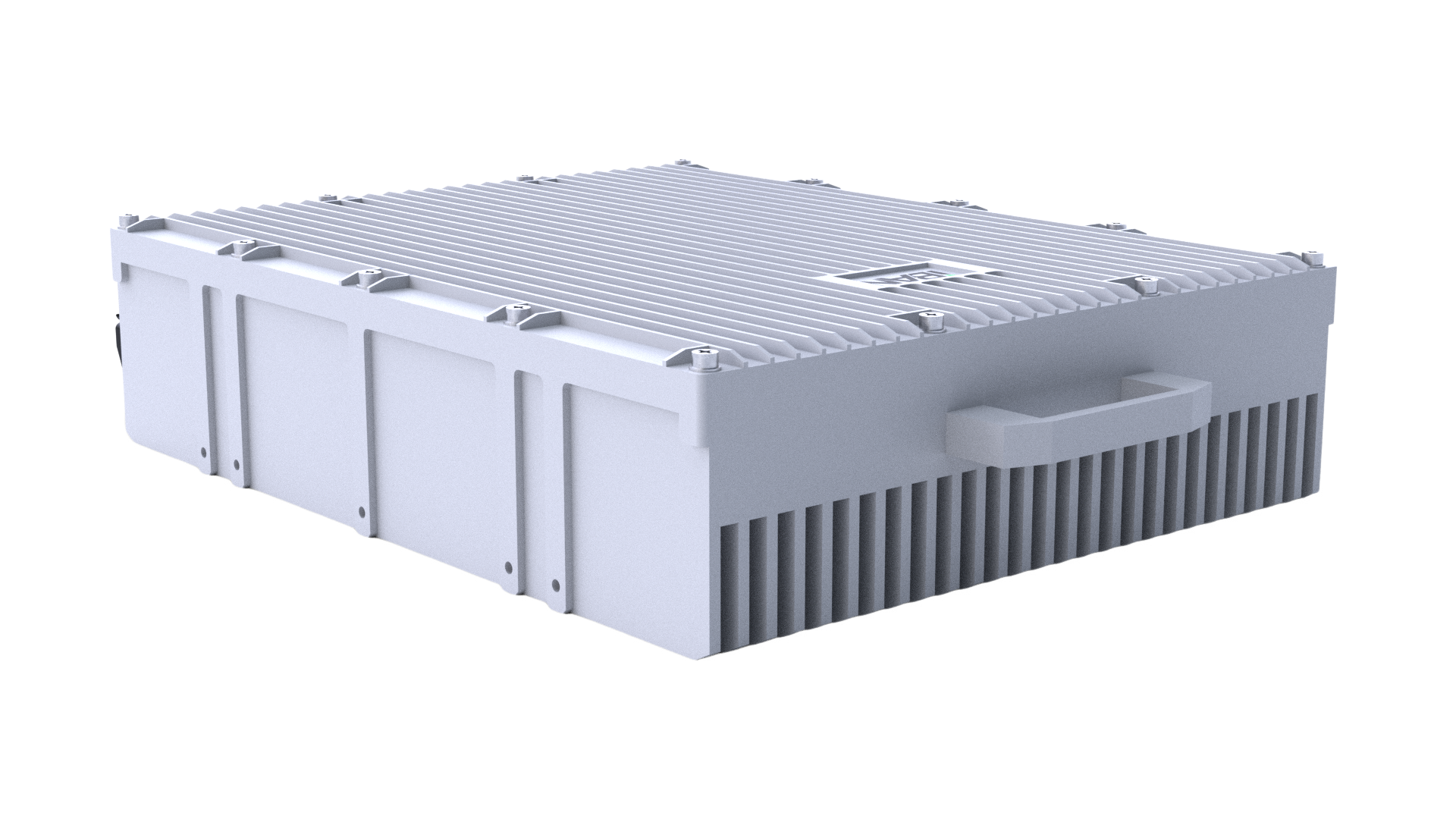

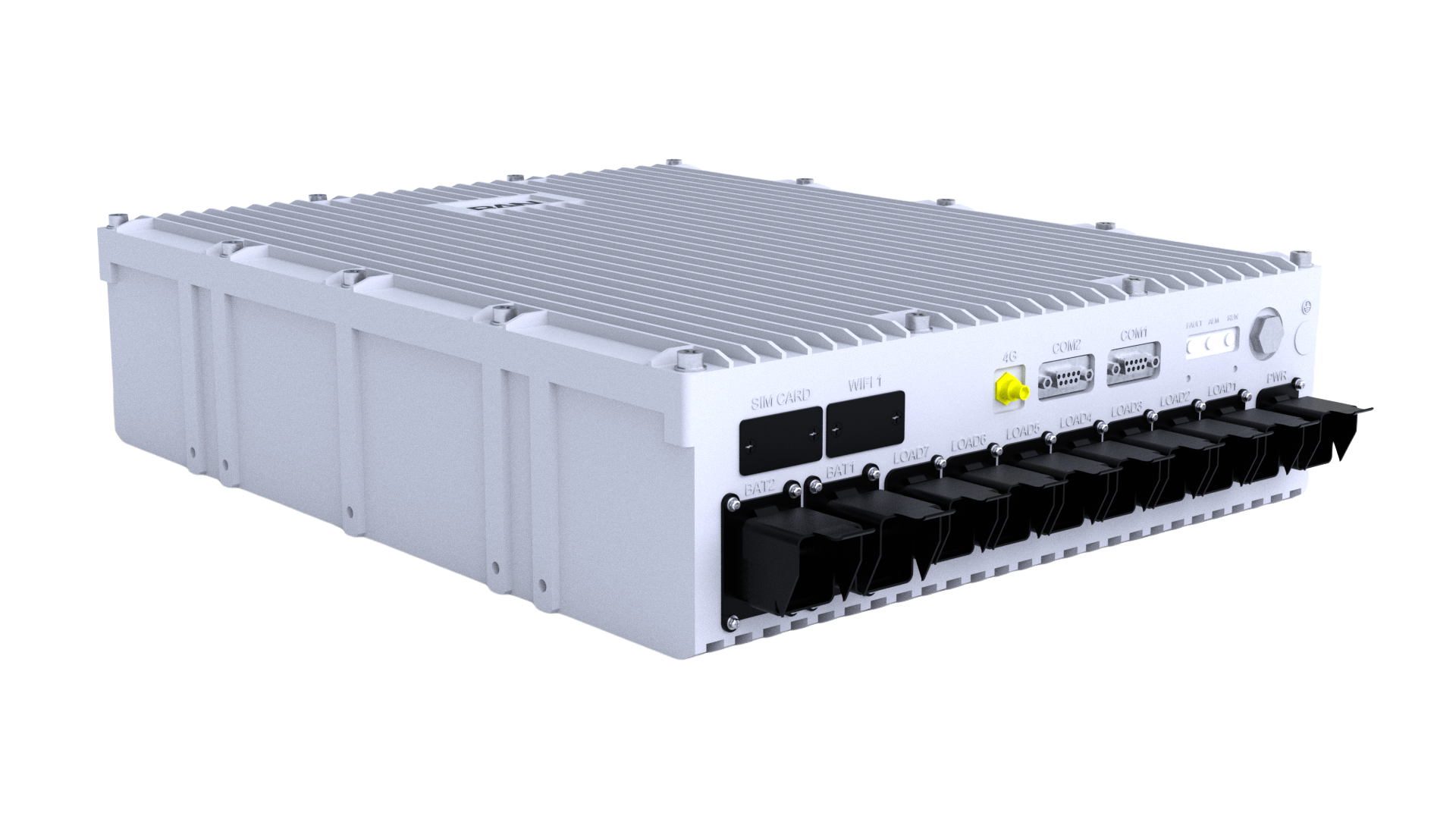

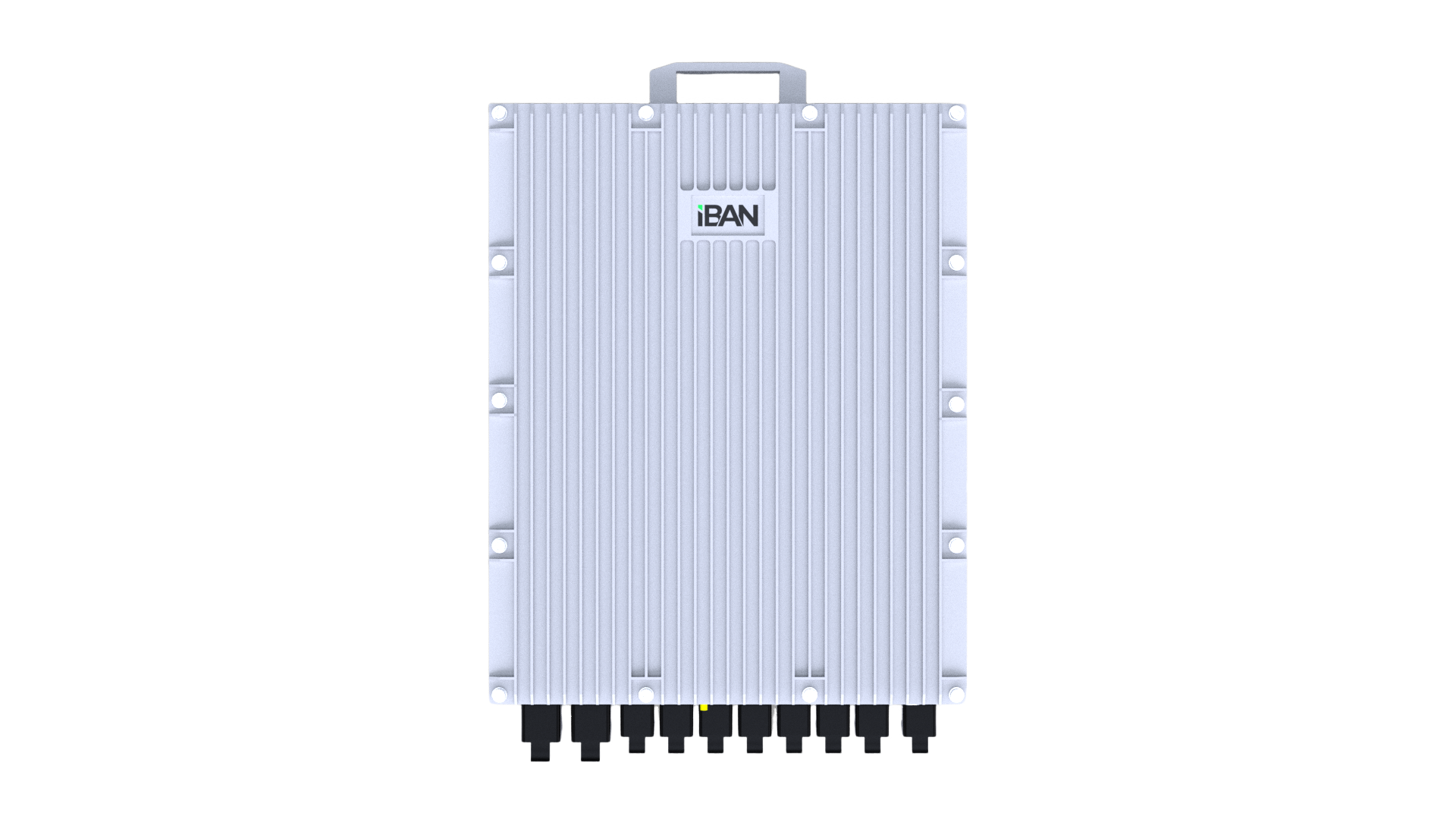

OPS 6000

The IBAN Power OPS 6000 Delivers Reliable 48 V DC Power For Outdoor Telecom Sites, Including Micro Base Stations And RRUs. Built With A Natural Cooling Structure And IP65-Rated Aluminum Housing, It Offers 6000W Output Power With Conversion Efficiency Up To 96%, Supporting High-Load Deployments.The System Provides Integrated Lightning Protection, Battery Backup, And Power Distribution Functions. Fully Compatible With IBAN OBS Series LiFePO₄ Batteries, OPS6000 Ensures Seamless Deployment In Hybrid Power Systems

Get Quote

Request Product Sheet

OPS 6000

Input Voltage Range

90-280Vac

Rated Input Voltage

220 Vac

Output Voltage Range

43 - 58Vdc

Rated Output Voltage

53.5Vdc

Output Power

6000W

Maximum Output Current

120A

Efficiency

>96%

Cooling

Natural cooling

Operating Temperature

-40℃ ∼ +55℃

Parallel Support

Up to 4 units

Communication

RS485, Dry Contact, CAN

Protection Level

IP65

Weight

< 8 Kg

Dimension

440mm x 349mm x 97mm

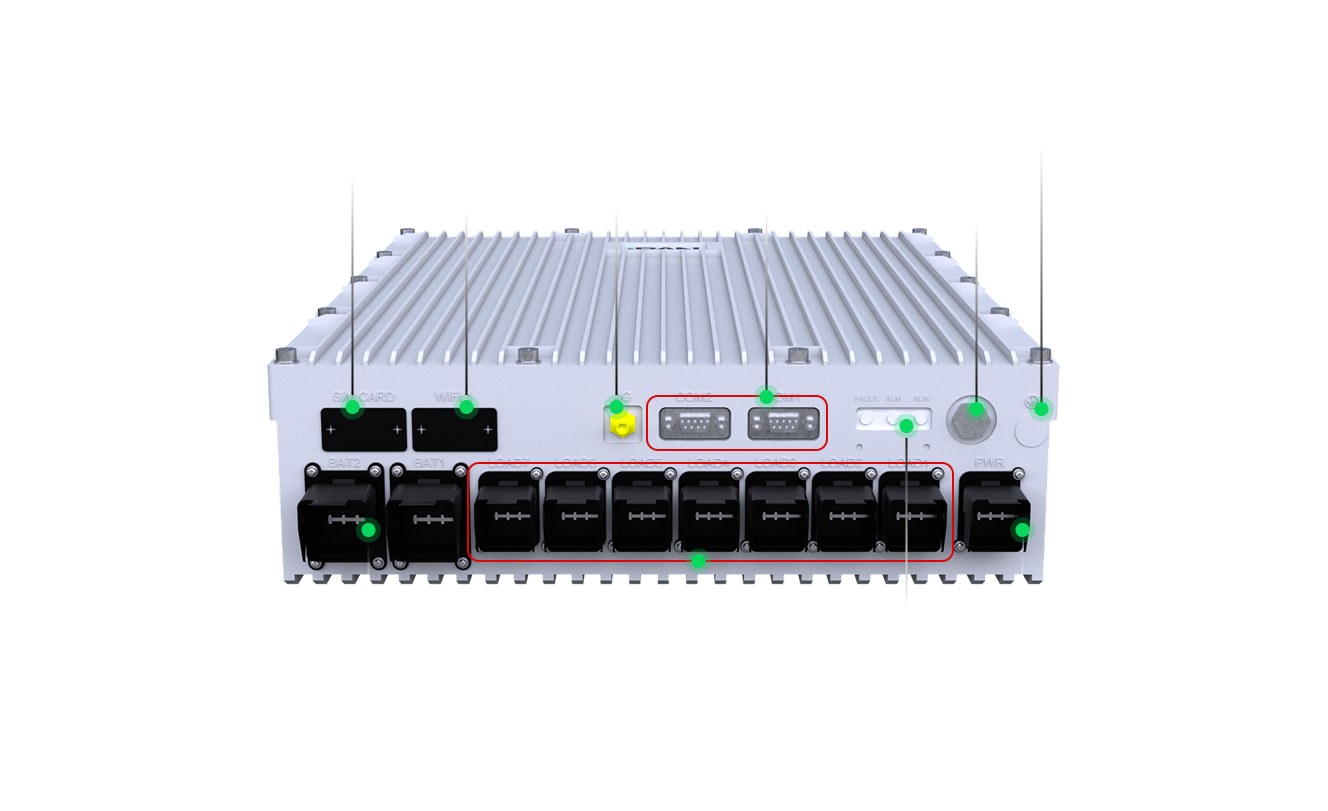

01

Battery Connection Port

02

DC Output 1-7

03

AC Power Input
90-280Vac

04

SIM Card Slot

05

Wi-Fi Port

06

4G Antenna Port

07

Communication Port
RS485 / CAN

08

Status LEDs SOC / Alarm

09

Power Switch

10

Grounding Point (M6 Screw)

Power Factor Correction (PFC), PF ≥ 0.99
95% System Conversion Efficiency At Full Load
AC / DC Surge And Overvoltage Protection Design
Maintains Full-Load Operation Up To 55°C Ambient Temperature
Full Fault Protection And Alarm Notifications
Seamless Battery Management: Low Voltage Protection, Load Disconnect, Temperature Compensation, Voltage Regulation, Current Limiting, Capacity Calculation, Battery Test
Supports Parallel Operation (Up To 4 Units) With Hardware Synchronization
Remote Monitoring Via RS485 And Dry Contact Interfaces
Certified To UL60950, EN55032 Class A, IEC61000-4-2/4/4-5/4-6/4-11 Standards

Engineered for the Real World

Designed for extreme environments, the iBAN outdoor system delivers reliable performance from -40°C to 55°C, with IP65-rated protection against dust and water.
