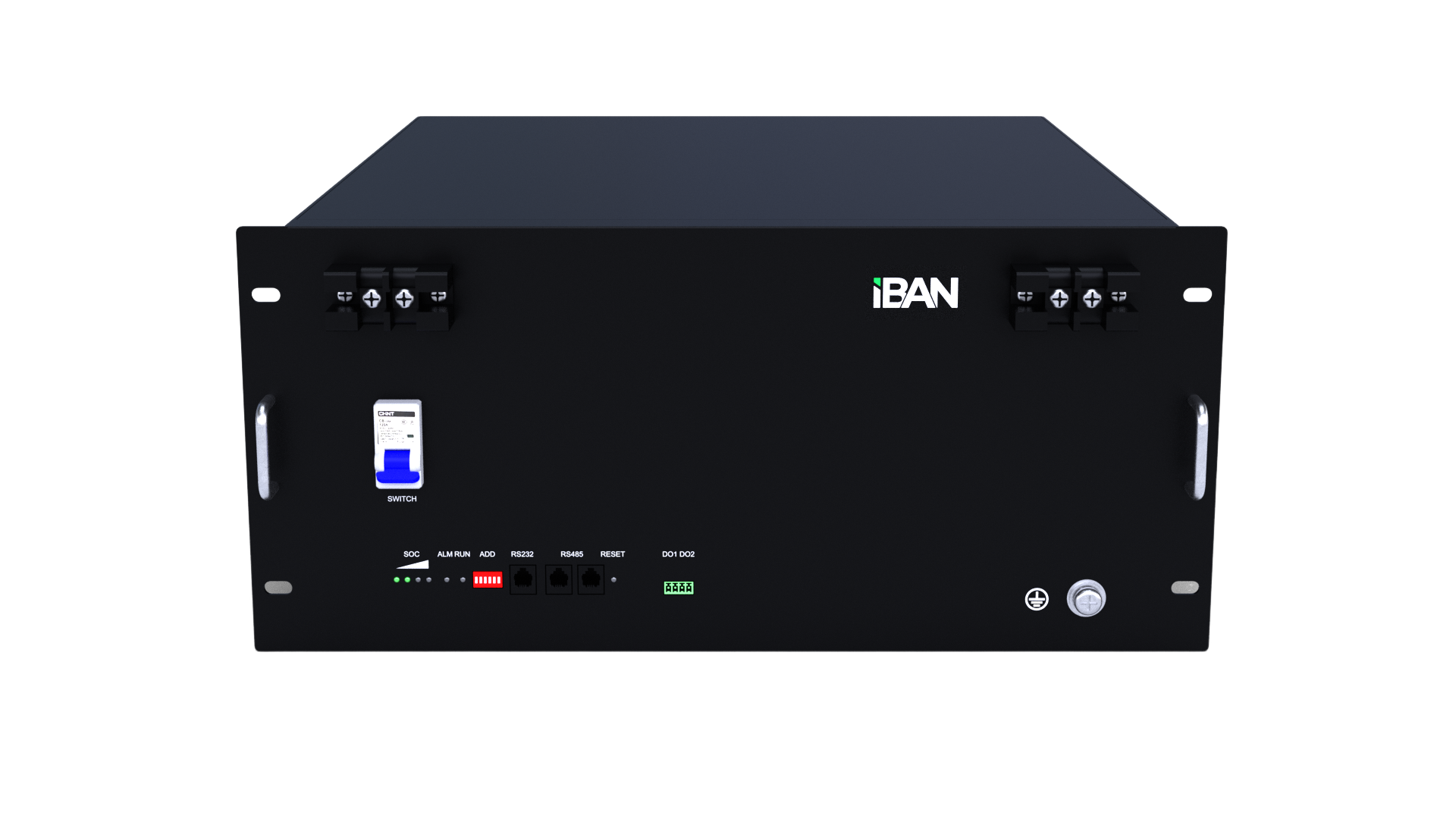

EBS 48200
Classic Battery
# 19” #5U

High-Density, Intelligent, and Scalable

The IBAN Power EBS 48200 LiFePO4 Battery Features A Standard 19” Rack-Mount Design With High Energy Density, Optimizing Space For Telecom Networks. It Supports 16-Cell Parallel Connections And Up To 8 Battery Packs In Parallel, Ensuring Scalable Power Expansion.

With Advanced BMS Integration, It Ensures Precise Charge/Discharge Control, SOC Calibration, And Battery Balancing, While The RS485 Interface Supports Remote Monitoring, Fault Diagnostics, And Alarm Notifications.

Request Product Sheet
EBS 48200
Nominal Voltage
48 V
Nominal Capacity
200 Ah
Maximum Charge Current
100A
Maximum Discharge Current
100A
Discharge Cut-Off Voltage
40.5V
Cycle Life
4000cycle@80%DOD
Operating Temperature
-20°C ~ +55°C
Communication Modules
RS485/CAN/SNMP (Optional)
Weight
78 Kg
Dimensions
442mm x 530mm x 220mm

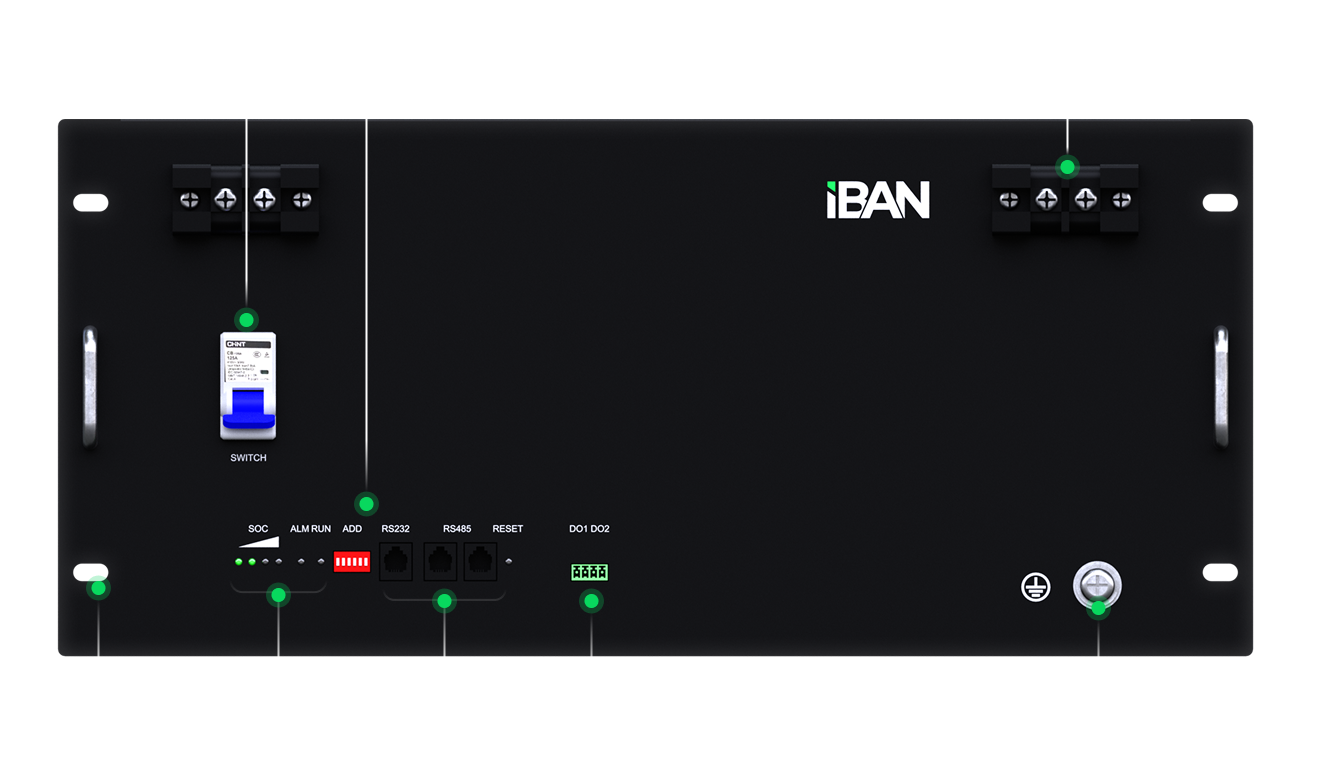

Back Panel

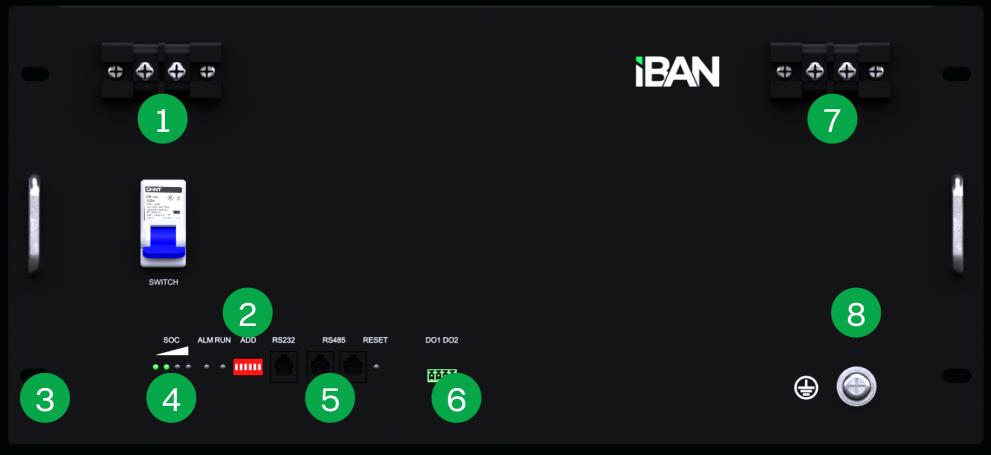

Back Panel Mobile
01
Circuit Breaker
02
DIP Switch (ADD)
03
Mounting Hole
04
Status LEDs SOC/Alarm
05
RS232: RJ11 Port
RS485: RJ45 Port
06
Dry Contact Terminals
07
Power Output/ Input Terminals
08
Grounding Point (M6 Screw)
